Rail drills

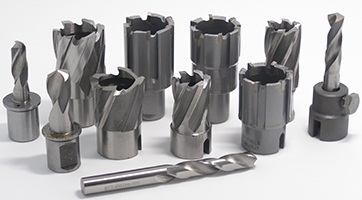

T.C.T. rail core drills
HSS rail core drills
Dia: 22~36mm, cutting depth 25mm or 50mm
Dia: 22~36mm, cutting depth 25mm or 50mm

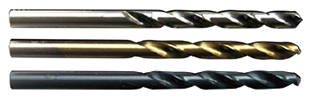

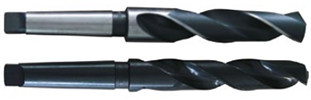

Integral solid rail twist drills HSS twist drills HSS Morse taper shank twist drills

Dia: 9.8~27.5mm, cutting depth 25mm

Process: milled, rolled, fully-ground
Material: HSS or HSS-cobalt
Application material: steel, castiron or other soft metal
Surface treatment: white, black, Ti-coated

Process: milled
Material: HSS or HSS-cobalt material: steel, castiron or other soft metal
Surface treatment: white, black, Ti-coated

Rail cutting disc

1. For rail cutting machine: Max. safe working linear velocity: 80m/s

Model

Outside diameter(mm)

Thickness(mm)

Hole diameter(mm)

Max. speed(rpm)

RCD8-2501

250

3

22.23

6100

RCD8-2502

250

3

25.4

6100

RCD8-3001

300

3.8

22.23

5100

RCD8-3002

300

3.8

32

5100

RCD8-3501

350

4.2

25.4

4400

RCD8-3502

350

4.2

32

4400

RCD8-3503

350

4.2

40

4400

RCD8-4001

400

4.5

25.4

3800

RCD8-4002

400

4.5

32

3800

RCD8-4003

400

4.5

40

3800

2. For high speed rail cutting machine: Max. safe working linear velocity: 100m/s

Model

Outside diameter(mm)

Thickness(mm)

Hole diameter(mm)

Max. speed(rpm)

RCD10-3001

300

3.8

20

6370

RCD10-3002

300

3.8

22.23

6370

RCD10-3051

305

3.6

22.23

6370

RCD10-3501

350

4.2

20

5460

RCD10-3502

350

4.2

22.23

5460

RCD10-3503

350

4.2

25.4

5460

RCD10-3504

350

4.2

32

5460

RCD10-3561

356

4.0

25.4

5460

RCD10-4001

400

4.5

25.4

4800

Grinding wheel series for rail

125*65*53mm-M20 For Robel etc brands rail grinder with the metric system nut
Grinding wheel series for rail
125*50*5/8”-11 For MATWELD etc. brands hydranlic grinders with brithish systems 5/8” nut,metal plate.
Cup shell angle grinding wheel
150*75*80mm-32 For all brand grinders
Grinding wheel series for rail
150*75*55mm-4*M8 For all kinds brands grinders with the metric system nut
Grinding wheel series for rail
150*75*5/8”-11 For MATWELD etc. brands hydranlic grinders with brithish systems 5/8” nut,metal plate.
Grinding wheel series for rail
200*80*130mm-4*M10 For Nencki brand rail welding grinder with the metric system nut
Grinding wheel series for rail
255*35*32(30)mm For all brand grinders
Grinding wheel recessed one side for rail
260*25*120mm For all brand grinders
Straight grinding wheel for rail
